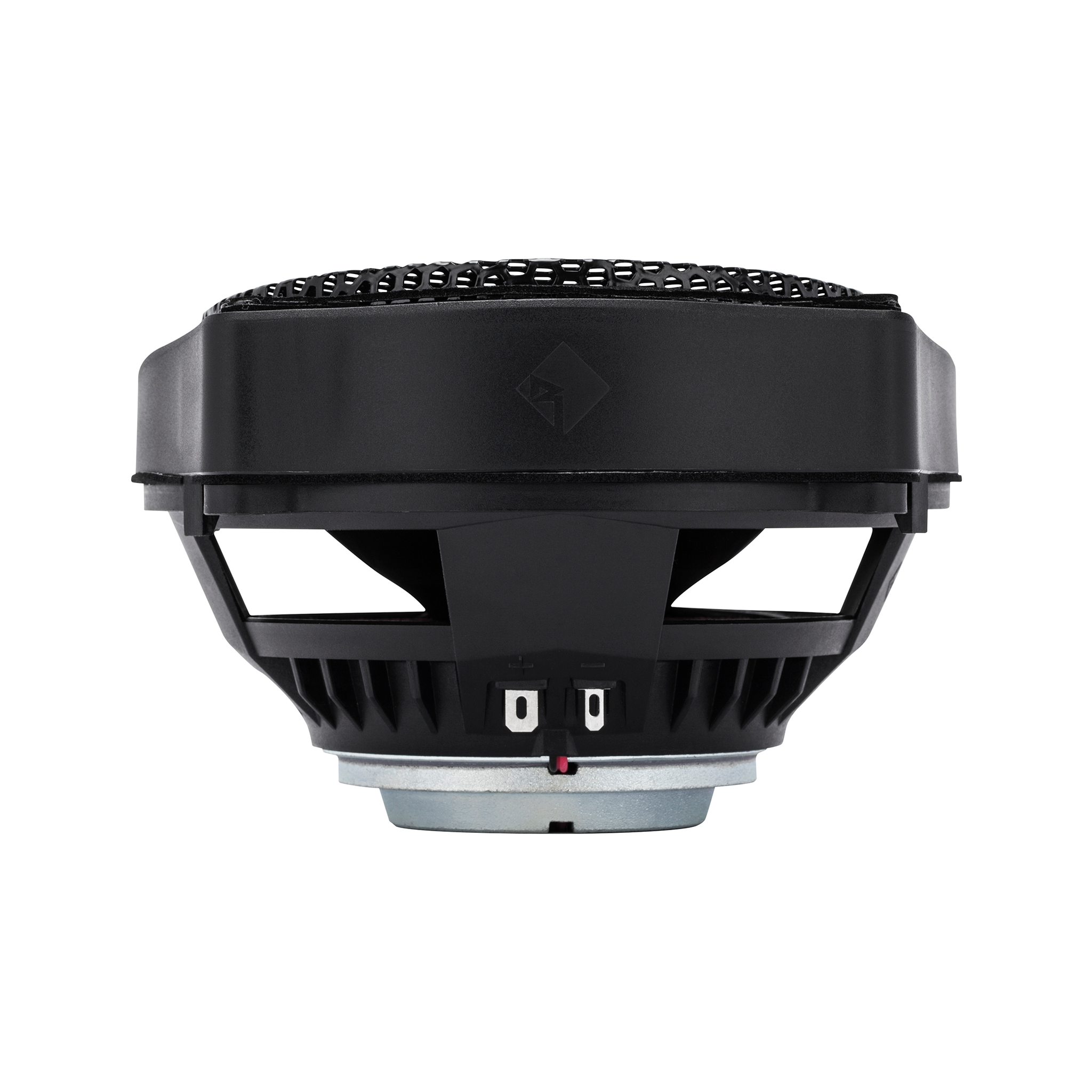

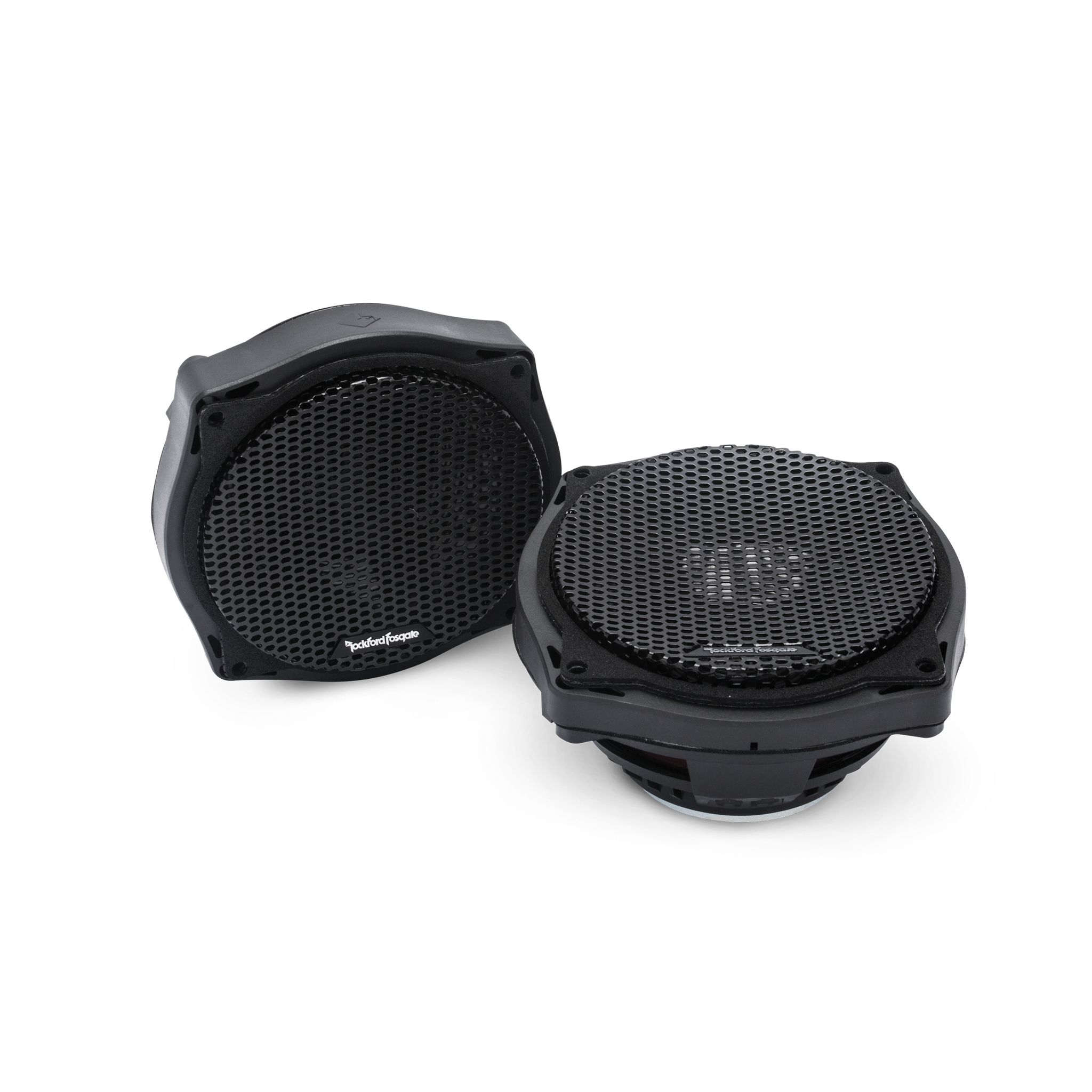

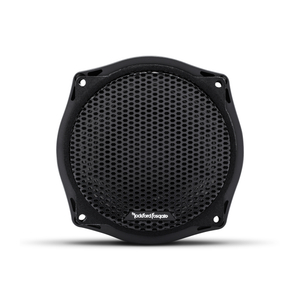

The TMS6SG full range coaxial speaker is designed for direct fitment applications on select model (see compatibility chart) Harley-Davidson® Electra Glide® and Street Glide® motorcycles in the upper fairing locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.
Harley-Davidson® and Street Glide® are registered trademarks of Harley-Davidson Motor Company
FEATURES AT A GLANCE
- Element Ready design that is weather and water resistant
- Ultra-Efficient 25mm Proprietary Film Dome Tweeter
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Carbon Fiber Reinforced Polypropylene Cone
- High Power 35mm Voice Coil
- Ultra‐Efficient Neodymium Ring Magnet Motor
- Ultra‐High Temperature Glass Reinforced Polymer Frame
- Integrated Spade Terminals
- Integrated 6dB Crossover with High Power Polyester Capacitor
- Santoprene Front Isolation Spider
- Poly‐Cotton Spider
- Co‐Molded Cone and Surround
- Santoprene VAST Surround
- Designed for 1998‐2013 Harley-Davidson® Electra Glide® / Street Glide® Fairing Locations
- NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
- Low Profile Coaxial Tweeter Design
- Discreet (Hidden) Tweeter Wire
- 2-Year Warranty
| YEAR | MAKE | CHASSIS | MODEL | FAIRING |
|---|---|---|---|---|
| 2006–2013 | Harley-Davidson® | FLHX | Street Glide® | Bat Wing |
| 1998–2013 | Harley-Davidson® | FLHTI | Electra Glide® Standard | Bat Wing |
Rockford Fosgate Canada Limited 2-Year Warranty
Return Authorization Process
Diagnose First
Prior to requesting an RA, try to diagnose the failure. Many products we receive are sent back with No Trouble Found, usually due to incorrect installation. Use our Knowledge Base for troubleshooting assistance.
Contact Customer Support
Please call us during normal business hours at 1-800-669-9899 (option #1) and be prepared with the following information:
First and Last Name with complete Shipping Address
Product Name (T0D415)
Serial Number (12 or 13 digit number)
Failure Diagnosis (no output, no power LED, etc.)
Scanned copy of Original Receipt emailed to cs.support@rockfordcorp.com (dealer name, purchase date, and item purchased must be legible)
Credit/Debit Card (if paying for out-of-warranty claims)
No money orders or checks.
Shipping Instructions
When shipping your product, your package MUST have the following information:
RA# Printed Outside of Box (as large as possible)
Copy of Original Receipt
Shipping Address
Ship your product (UPS or FedEx preferred) to the following:
Rockford/ AJR International
300 Regency DR
Glendale Heights, IL 60139
RA#:_______________________
