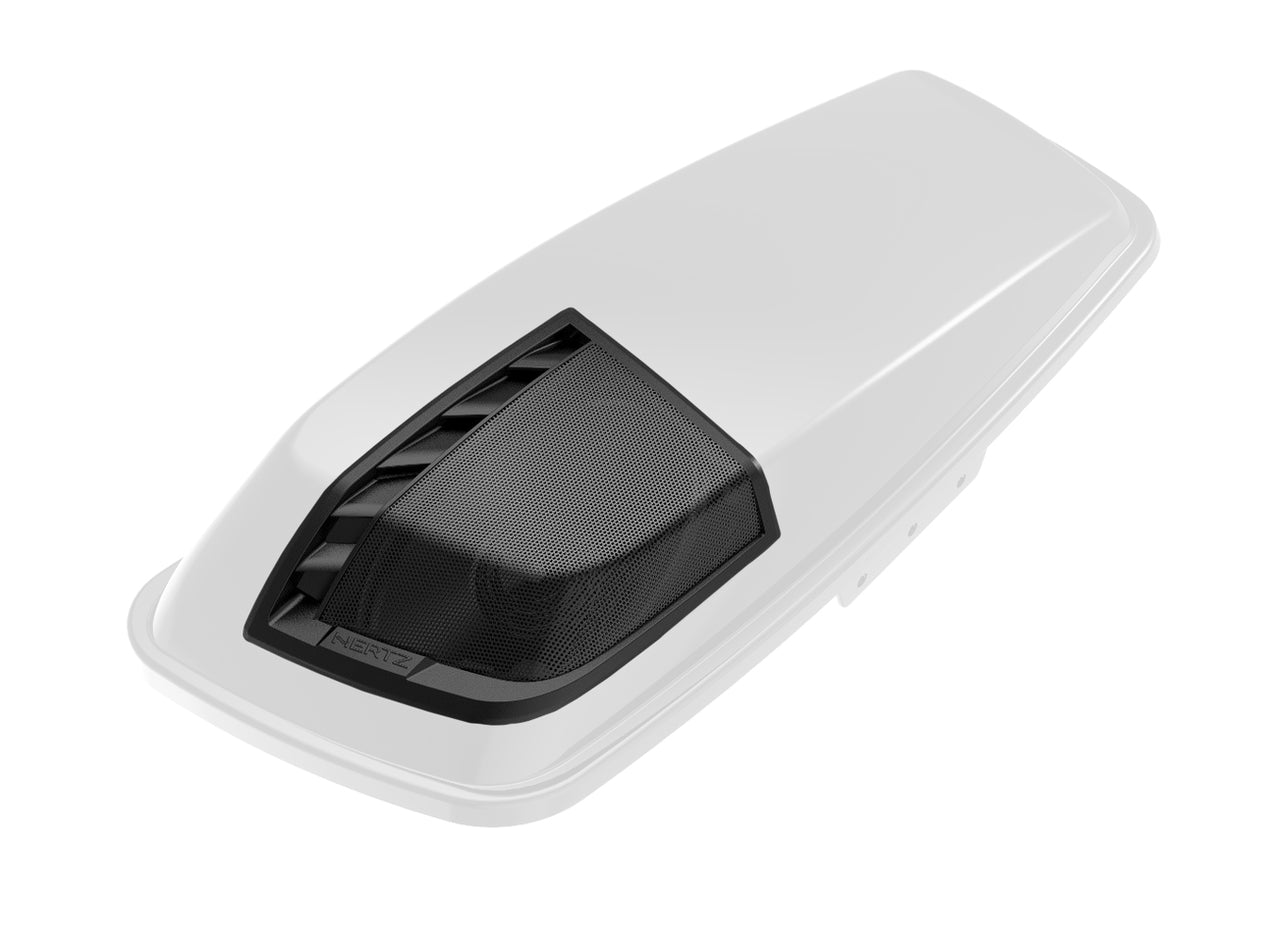

HD14 Saddlebag Lid: Specifically designed to perfectly fit the saddlebags of your motorcycle, providing a dedicated space for mounting 6x9 inch Hertz speakers.
SX 690.1 NEO speakers: (1 pair) Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter.

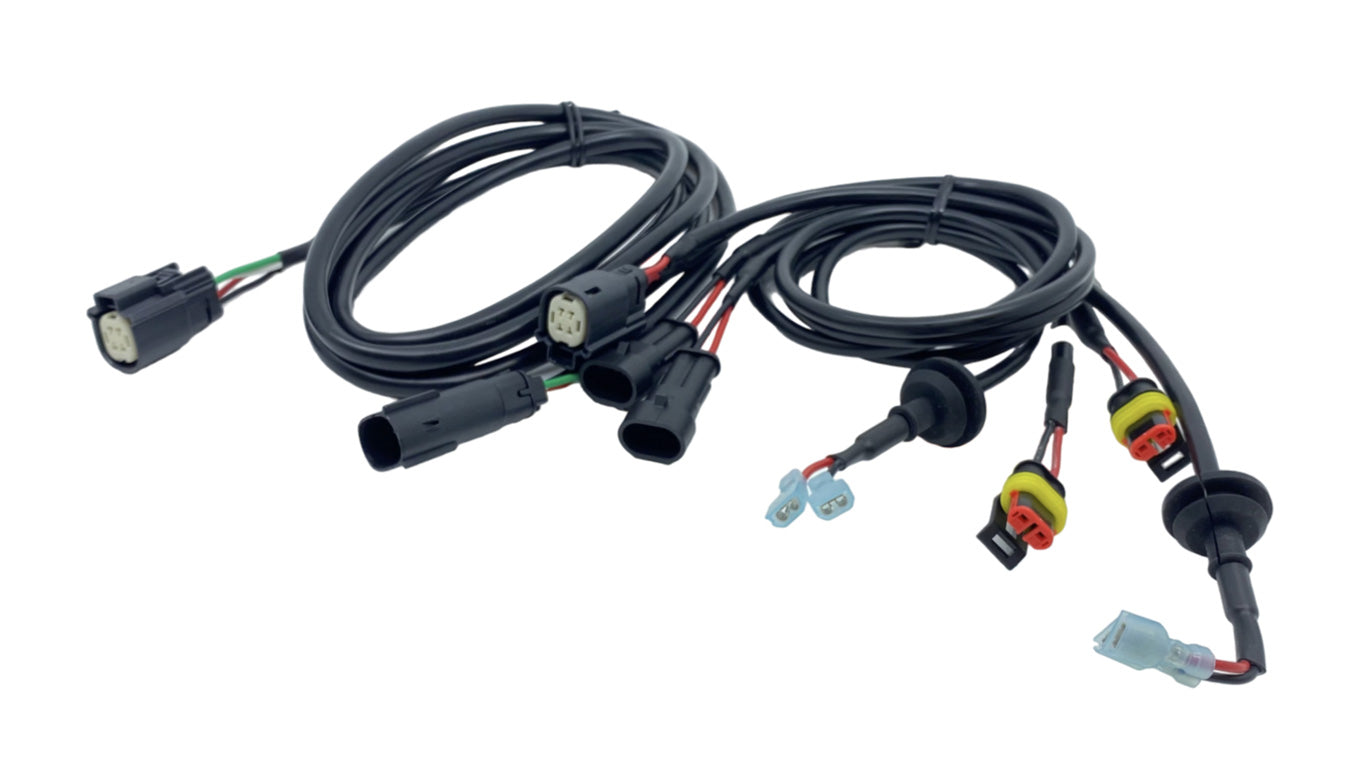

HBH14 Speaker Harness: A plug & play harness that simplifies installation, allowing you to easily connect the speakers to your existing audio system.

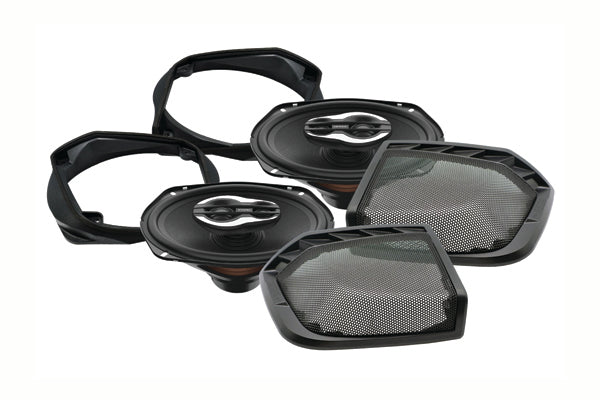

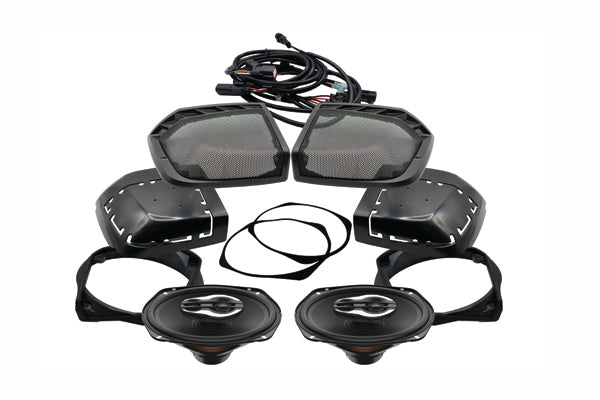

Mounting Accessories: Includes a cut-out template, 6x9 inch speaker mounts, speaker grilles, and mounting hardware.
- Compatibility: Fits all 2014 through 2022 Street Glide, Road Glide (2015+ ), Road King, and Ultra models with non-speaker lids and hard saddlebags. Also fits all non-CVO 2023 models. Will not work with factory equipped electric lid locks.
- Ease of Installation: Thanks to the HBH14 plug & play harness, installation is quick and easy.
- Robust Design: Constructed with high-quality materials to ensure durability and resistance to weather conditions.
1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double-layer copper voice coil, wound on polyimide former.
4. Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome super tweeter with resettable solid-state tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with the most common motorcycle connections.
6. Provided elegant grille made with a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!
| Component | SPL COAXIAL |
| Size mm (in.) | in. 6 x 9 |
| Power Handling - Continuous W | 130 |
| Power Handling - Peak W | 260 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 29 (1.14) |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter Voice Coil Ø mm (in.) | 25 (1) |
| Frequency Response Hz | 65 ÷ 24k |
| Woofer Magnet size D x d x h mm (in.) | 110 x 45 x 20 (4.33 x 1.77 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14) |
| Weight of one speaker kg (lb.) | 1,69 (3.73) |
| Woofer Magnet | Special Neodymium N38 H |
| Tweeter Magnet | Special Neodymium N38 H |
| Cone | Water repellent pressed paper |
| Dome | Tetolon |
| D mm | 169 |
| Xmax mm | 5,5 |
| Re Ohm | 3 |
| Fs Hz | 65 |
| Le mH | 0,4 |
| Vas I | 11,29 |
| Mms g | 36,1 |
| Cms mm/N | 0,16 |
| BL T*m | 7,665 |
| Qts | 0,62 |
| Qes | 0,78 |
| Qms | 2,9 |
| Spl dB | 94 |
| A | 237,5 mm | 9.35 in. |
| B | 225 mm | 8.86 in. |
| C | 93 mm | 3.66 in. |
| D | 85 mm | 3.35 in. |
| E | 163 mm | 6.42 in. |
| F | 154 mm | 6.06 in. |
