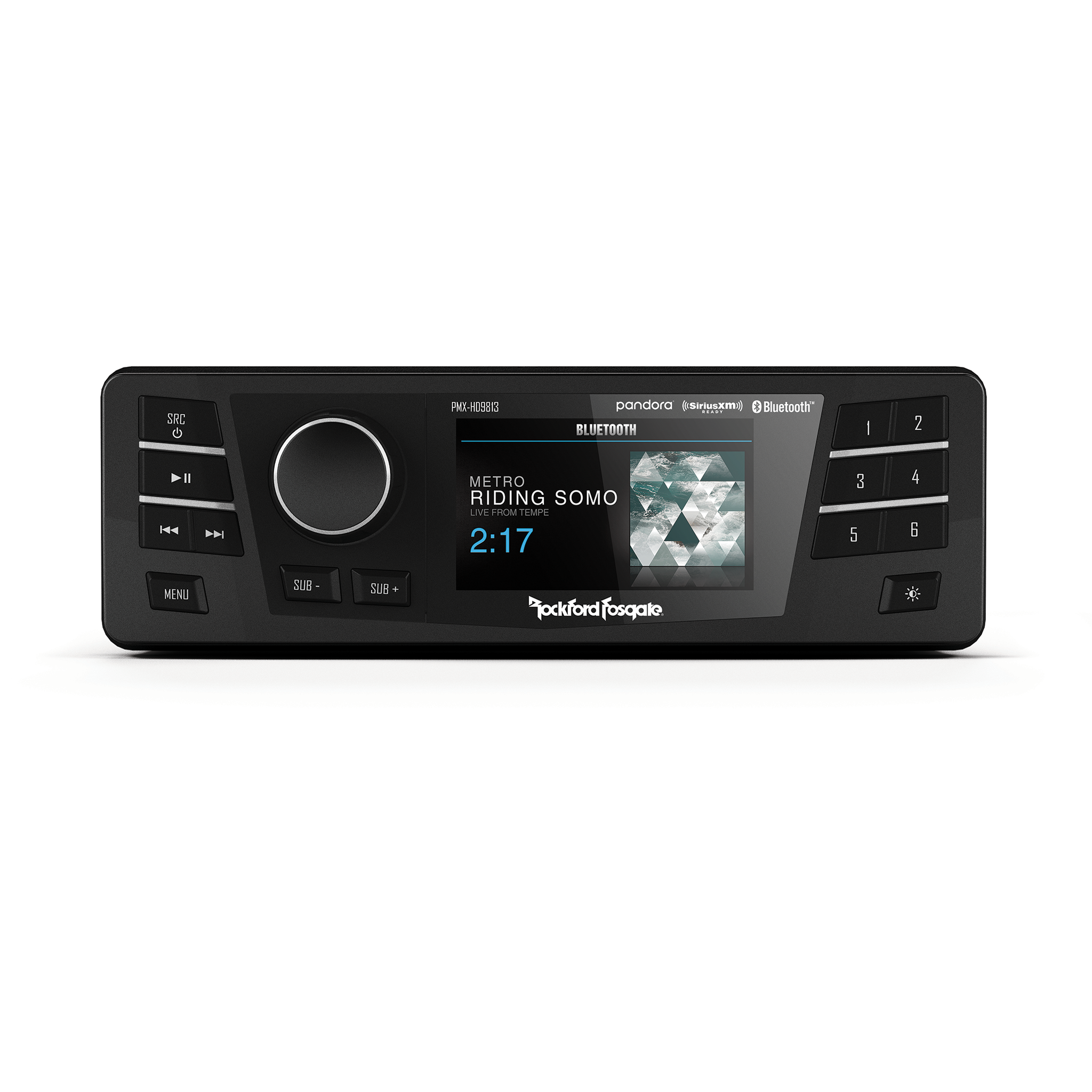

Digital Media Receiver for Select 1998-2013 Harley-Davidson Models PMX-HD9813
Direct replacement digital media receiver for select 1998 - 2013 Harley-Davidson® motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls. Refer to our FITMENT tab before purchasing.
FEATURES AT A GLANCE
- Pandora® Internet Radio Control
- A2DP and AVRCP Bluetooth® Wireless Streaming
- 1998-2013 Harley-Davidson® direct replacement digital media receiver
- Digital AM/FM/WB tuner with presets
- USB Input with 1.5A USB Charging
- SiriusXM® Ready (requires SiriusXM® SXV300 tuner)
- 3" Full Color TFT Display with Day/Night Mode
- Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
- Compatible with PMX-BTUR Remote control
- Plug and Play Installation with OEM electrical connectors
- AUX Input
- Software updatable via USB
- Retains factory thumb control functionality with no additional parts
- Voltage gauge with Low voltage Warning
- 7-Band Graphic EQ + PEQ
- Multi-region radio frequencies
- Independent Subwoofer Level Control
- 2-Year Warranty
- *Antenna not included
| Specification | Details | FM Tuner | Range: 87.9 - 107.9 MHz |
| Crossover Sub-Out | Variable from 60 Hz - 120 Hz | Sensitivity: 8 dB | |
| Signal-to-Noise Ratio | RCA 2V: > 85 dB | Frequency Response: 20 - 15 kHz | |
| High Level (CEA-2006): > 75 dB | Bluetooth® | 3.0+EDR | |
| Max Wrms | > 80 dB | A2DP 1.3 | |
| Channel Separation | RCA: > 50 dB | USB Version | 2 |
| High-Level: > 50 dB | Supported Media Formats | MP3, WMA | |
| Output Power | CEA-2006 Guidelines | USB Output Current | 1.5A |
| CEA-2006 Power Rating | Clock | Yes | |
| 25W x 4 @ 4Ω RMS | USB Capacity | 32 Gb max | |
| 50W x 4 @ 2Ω MAX | 255 Folders max | ||
| ≤1.0% THD+N | 999 Songs max | ||
| RCA Output Voltage | Front: 4 V Max | Format Win USB as FAT32 | |
| Rear: 4 V Max | Format Mac USB as MS-DOS (FAT) | ||
| Sub: 4 V Max | Display Size | Nominal Size: 3" Color TFT | |
| Frequency Response | RCA: 20Hz - 20 kHz | Resolution: 960 x 240 | |
| High-Level: 20Hz - 20 kHz | Brightness: 380 nits | ||
| Idle Current | < 2 Amps | Contrast: 400 | |
| Operating Voltage | 9.5 - 16 VDC | Pixels: 320 x 240 | |
| THD+N | 4-Ohms: < 1.0 % | View Angle: 120 | |
| Output Impedance | < 500 Ohms |
Made for iPhone Models
|
iPhone XS Max, iPhone XR, iPhone 8 Plus, iPhone 7 Plus, iPhone SE, iPhone 6s, iPhone 6, iPhone 5c, iPhone XS, iPhone X, iPhone 8, iPhone 7, iPhone 6s Plus, iPhone 6 Plus, iPhone 5s, iPhone 5 |
| AM Tuner | Range: 530 - 1710 kHz | Shipping Weight | 4.75 Lbs. (2.15 Kg) |
| Sensitivity: 40 dB | Made for iPod Models | iPod touch (5th generation), iPod touch (6th generation) | |
| Frequency Response: 45 to 2.4 kHz | Dimensions (HxWxD) | Faceplate: 2.7" x 8.4" x 0.7" (68.4 mm x 213 mm x 17.1 mm) | |
| Chassis: 2.5" x 8.2" x 7.5" (63.5 mm x 209.3 mm x 191 mm) |
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness available in the RFK-HD9813 or separately with the 1130-72997-01. PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.
| YEAR | MAKE | MODEL |
|---|---|---|
| 2006-2013 | Harley Davidson® | Street Glide®1 |
| 1998-2013 | Harley Davidson® | Road Glide®1 |
| 1998-2013 | Harley Davidson® | Electra Glide®1 |
We always recommend a qualified Harley-Davidson technician install these systems. However, if you would like to try to install this yourself here are some great videos about the products, step by step installation videos and tuning guide to help you.
PMX-HD9813 H-D Road Glide Upgrade
PMX-HD9813 Tuning Guide PMX-HD9813 Software Downloads
