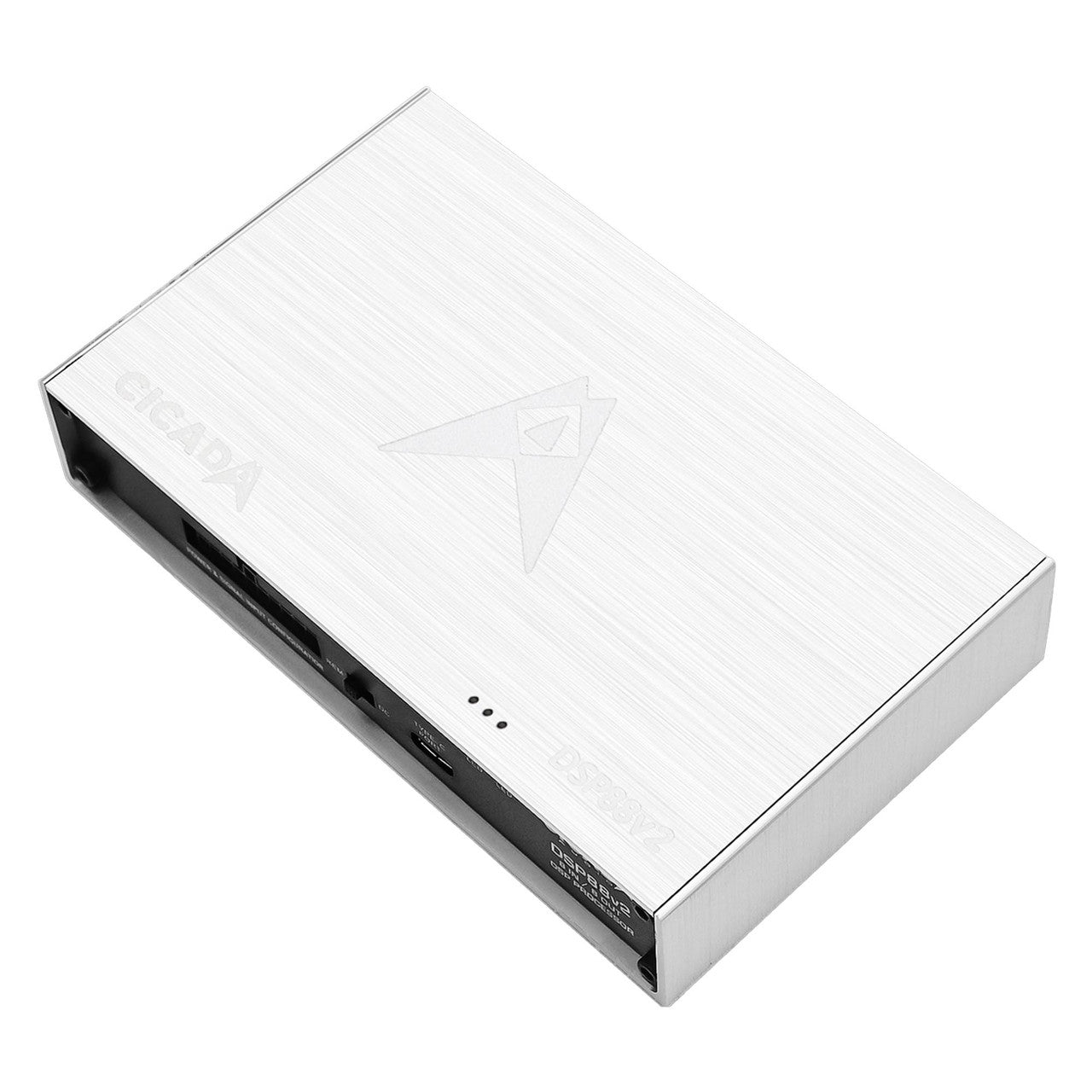

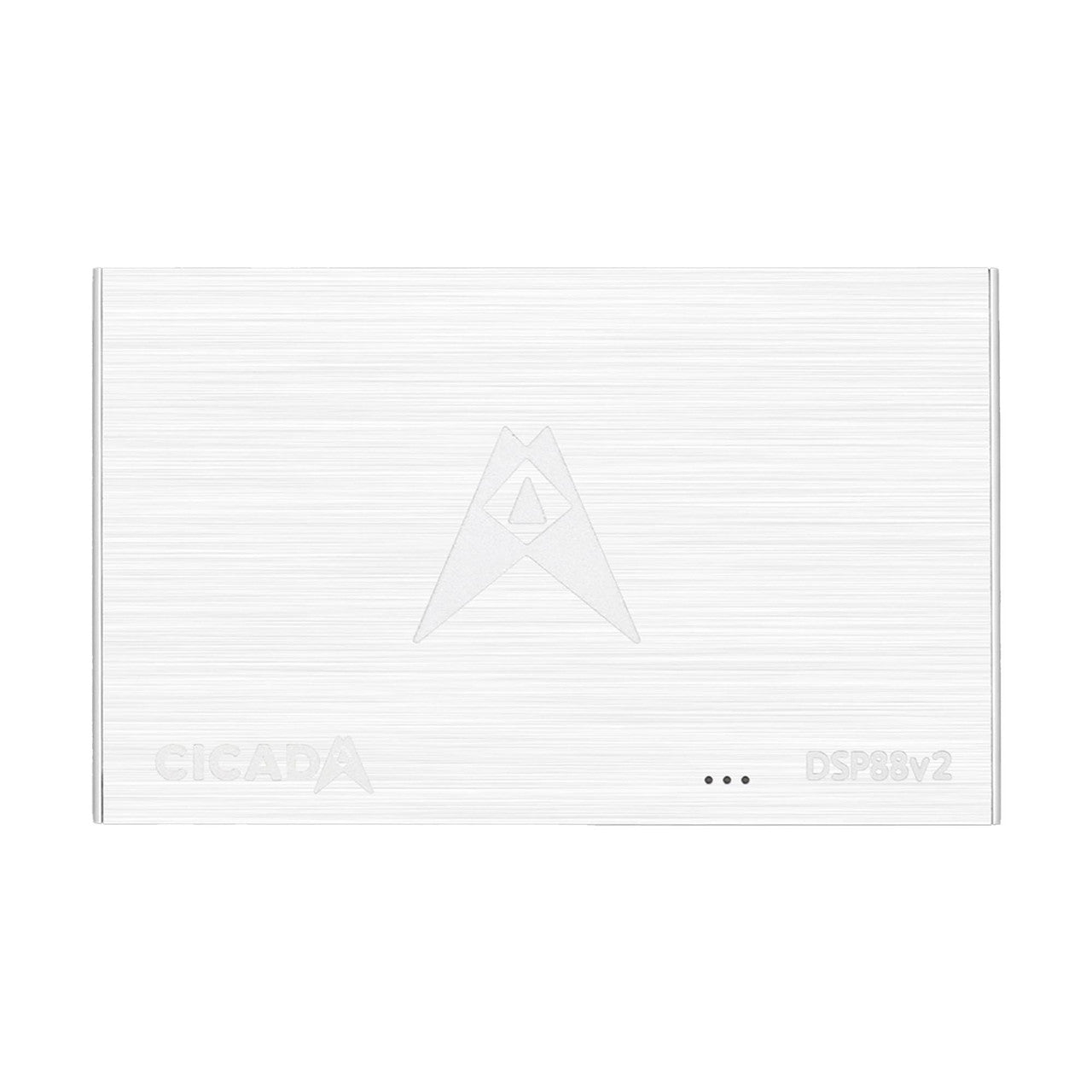

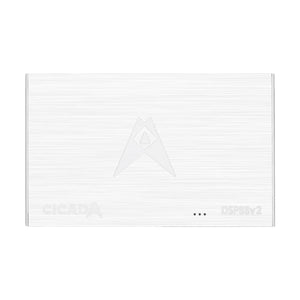

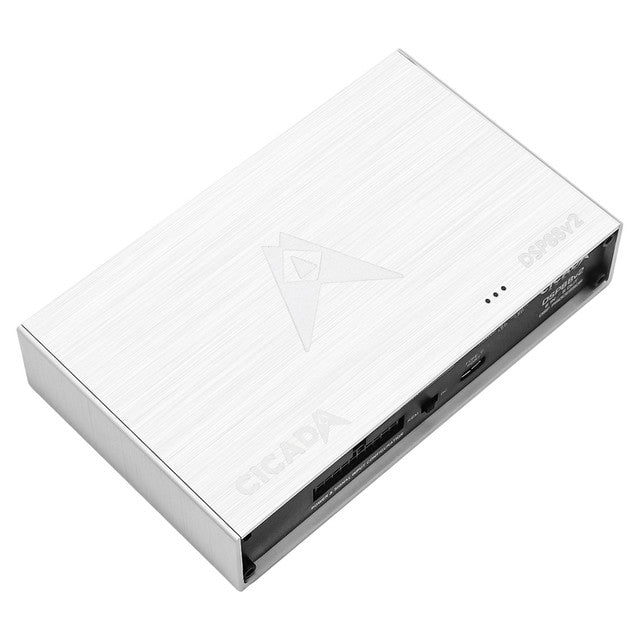

Cicada Audio DSP88V2 8-Channel Digital Signal Processor

If you're an audiophile seeking pristine sound quality and precise control over your audio system, look no further than the Cicada Audio DSP88V2 8-Channel Digital Signal Processor. This remarkable device offers a blend of cutting-edge technology and user-friendly features, ensuring your audio setup delivers impeccable performance. Let's dive into the specifics of what makes the DSP88V2 a must-have for any serious audio enthusiast.

Unpacking the Power of the DSP88V2

The Cicada Audio DSP88V2 isn't just another signal processor; it's a powerhouse of audio engineering. With 8 high-low level inputs and 8 RCA outputs, this device offers flexibility and precision. Whether you're integrating it into a simple setup or a complex audio system, the DSP88V2 can handle it all with ease.

High Fidelity Audio Performance

At the heart of the DSP88V2 is its impressive audio fidelity. The processor boasts a frequency response range of 20Hz to 20kHz with a minimal deviation of +/- 0.5dB. This means you get clear and accurate sound reproduction across the entire audio spectrum, from the deepest bass notes to the highest treble tones.

Dynamic Range and Noise Reduction

One of the standout features of the DSP88V2 is its exceptional dynamic range and noise reduction capabilities. With a signal-to-noise ratio exceeding 100 dBA (A-weighted), your audio remains free from unwanted background noise. Additionally, the adaptive noise cancellation technology filters out engine, wind, and road noises, ensuring a clean and immersive listening experience.

Precision and Control with Digital Signal Processing

The DSP88V2 is equipped with a high-speed DSP engine running at 147 MIPS (Million Instructions Per Second). This, combined with 32-bit precision and 72-bit accumulators, allows for detailed and accurate audio processing. The 24-bit Digital to Analog Converter (DAC) and Analog to Digital Converter (ADC) ensure that both input and output signals maintain high fidelity and minimal distortion.

Customizable Crossover and EQ Settings

For those who love to tweak and perfect their audio settings, the DSP88V2 offers extensive customization options. The variable crossover frequency ranges from 20Hz to 10kHz, with selectable slopes of 6/12/18/24/36/48 dB per octave. The parametric EQ features an 8-band adjustable Q factor from 0.05 to 20.0, providing precise control over the frequency response.

Intuitive App Control

One of the most user-friendly features of the DSP88V2 is its app control functionality. Using Cicada Audio’s patented Bluetooth digital signal processor technology, you can tune and control your DSP via the CA DSP app on your smartphone or tablet. This app allows you to save and upload system settings, making it easy to transfer your preferred configurations between different DSP88V2 units.

Seamless Integration and Setup

Setting up the DSP88V2 is a breeze, thanks to its versatile input and output options. The 8 high-low level inputs cater to various signal sources, while the 8 RCA outputs provide ample connectivity for amplifiers and speakers. With an output impedance of 200 ohms and an input impedance of 20k ohms, the DSP88V2 ensures compatibility with a wide range of audio equipment.

Compact Yet Powerful

Despite its powerful capabilities, the DSP88V2 maintains a compact form factor. Measuring just 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm), it can easily fit into tight spaces, making it ideal for both car and home audio installations.

Crystal Clear Sound on the Go

For those who enjoy listening to music while driving, the DSP88V2 is an excellent choice. Its ability to produce up to an 8-volt signal per channel ensures that your amplifiers can deliver high-quality sound, even in noisy environments. Whether you're cruising on the highway or navigating city streets, your music will always sound crisp and clear.

Reliable Performance

The DSP88V2 operates within a voltage range of 9 – 16 VDC, ensuring stable performance even in varying electrical conditions. With a total harmonic distortion plus noise (THD+N) of less than 1.0%, you can trust that your audio signals will remain clean and undistorted.

Why Choose the DSP88V2?

In a market saturated with audio equipment, the Cicada Audio DSP88V2 stands out for several reasons. Its combination of high performance, user-friendly features, and versatile connectivity makes it a top choice for audiophiles and audio professionals alike. Whether you're upgrading your car's sound system or setting up a high-fidelity home audio setup, the DSP88V2 offers the control and precision needed to achieve the best possible sound quality.

User-Friendly Features

The DSP88V2 is designed with the user in mind. Its intuitive app interface allows for easy adjustments and fine-tuning, even for those who are new to audio processing. The ability to save and load settings adds a level of convenience that is often missing in other signal processors.

Future-Proof Your Audio System

With its advanced technology and robust feature set, the DSP88V2 is a future-proof investment. As audio technology continues to evolve, the DSP88V2's flexible and upgradable platform ensures that it will remain relevant and useful for years to come.

A Sound Investment

Investing in the DSP88V2 is investing in quality audio. Whether you're a casual listener or a hardcore audiophile, this digital signal processor delivers the performance and reliability needed to enhance your listening experience. Its blend of precision, power, and ease of use makes it a standout choice in the world of audio equipment.

Conclusion

The Cicada Audio DSP88V2 8-Channel Digital Signal Processor is a game-changer for anyone serious about audio quality. Its blend of high performance, user-friendly features, and exceptional sound quality makes it a top choice for audiophiles and audio professionals alike. With the DSP88V2, you can achieve a level of audio clarity and precision that transforms your listening experience.

    DSP88v2 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT
    Signal Input: 8 High-Low Level Inputs
    Signal Output: 8 RCA Outputs
    Output Impedance 200 Ohms
    Frequency Response: 20Hz – 20kHz +/- 0.5Db
    Input Voltage: 0.02V – 12V
    Input Impedance: 20k Ohms
    Output Voltage Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to 2 V out, etc.)
    THD+N: <1.0%
    Signal-to-Noise: >100 dBA (A-weighted)
    Digital Signal Processing (DSP):
    Speed: 147 MIPS, Precision: 32-Bit, Accumulators: 72-bit
    Digital to Analog (DAC): Precision: 24-Bit
    Dynamic Range 108 dB
    THD+N -98 dB
    Analog to Digital (ADC): Precision: 24-Bit
    Dynamic Range 105 dB
    THD+N -98 dB
    Operating Voltage: 9 – 16 VDC
    Crossover Frequency: Variable: 20 Hz to 10 kHz
    Crossover Slope: Selectable Slope: 6/12/18/24/36/48 dB/Octave
    EQ Frequency Controls: Selectable Q: 0.05 to 20.0
    Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm)
