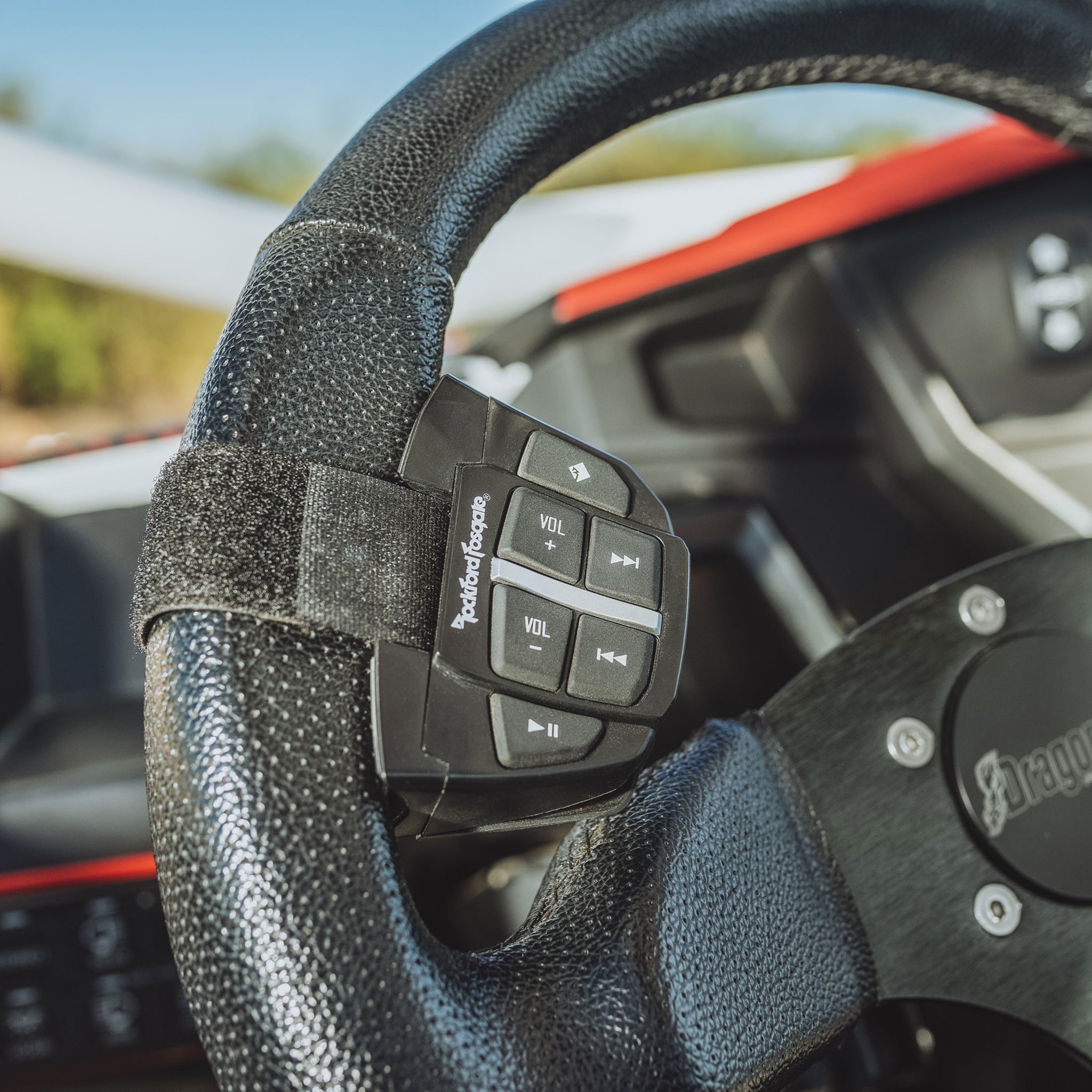

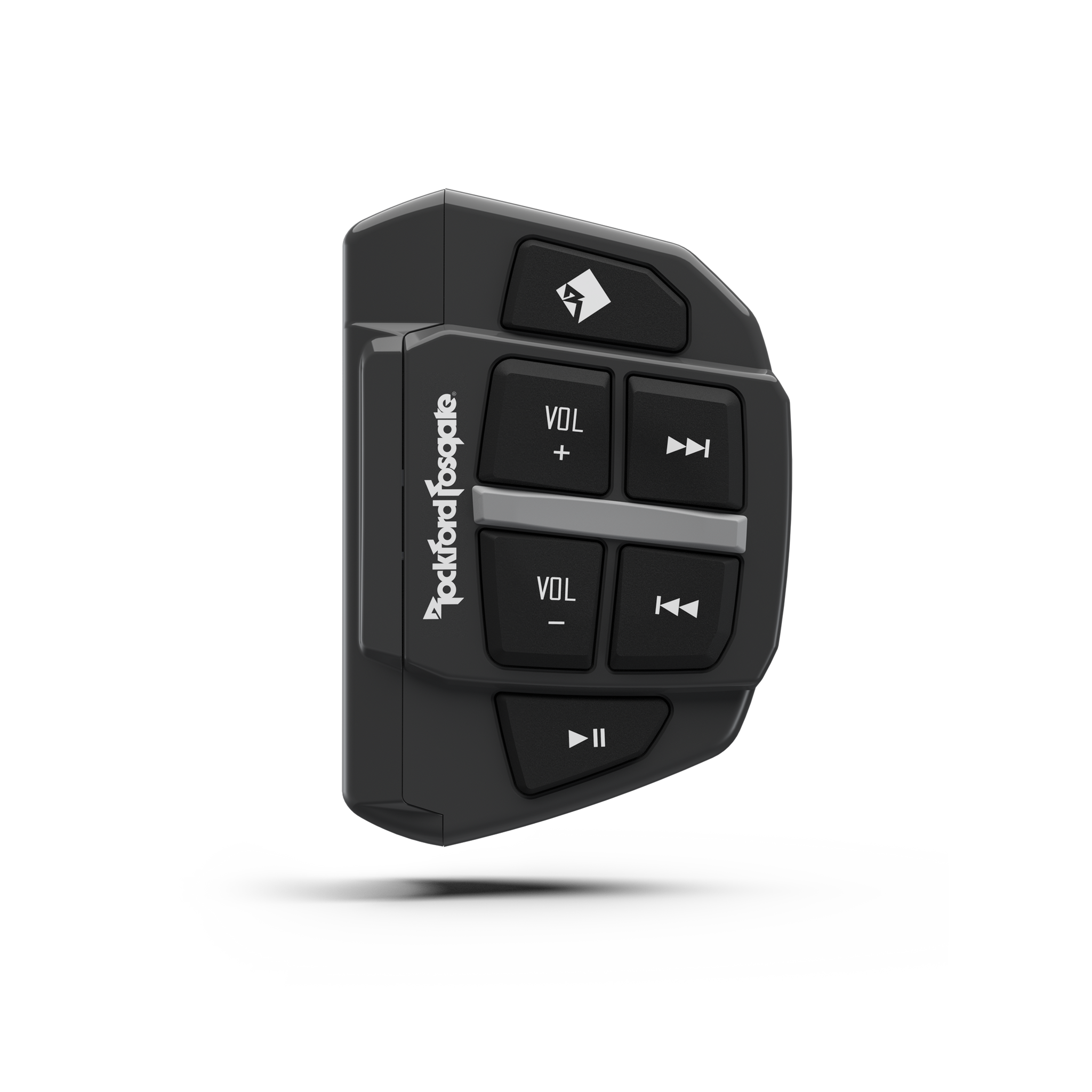

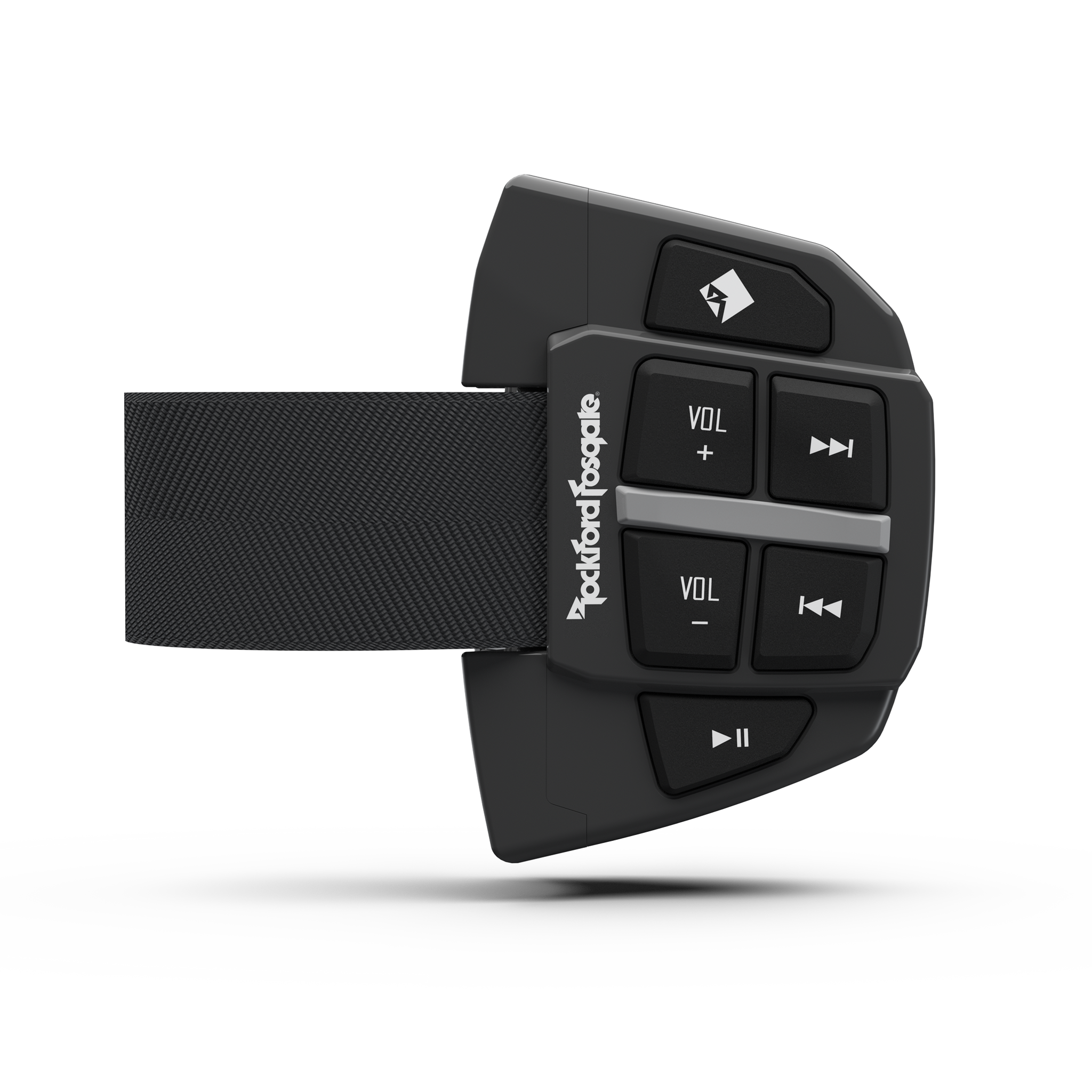

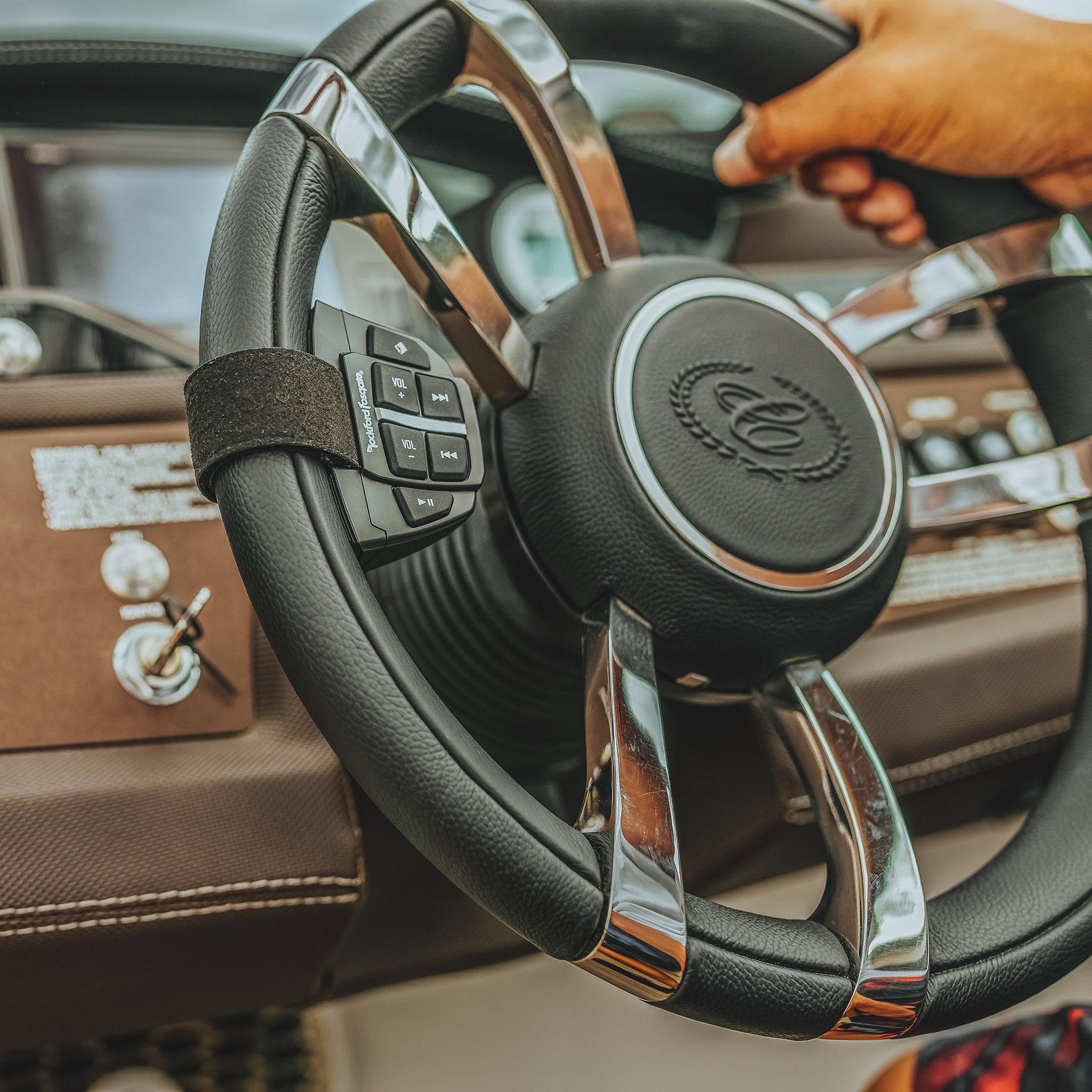

The PMX-BTUR is a universal Bluetooth® remote control designed for use with any audio system that utilizes a mobile device (phone) as a source having Bluetooth® connectivity. Remote control allows user to adjust Volume, Track, Play, and Pause on Android® or Apple® mobile devices. The Bluetooth® 4.0 Smart Ready receiver quickly and easily pairs with your mobile device using an easy one-button pairing control. Two options are included with the remote; a hand-held bezel and a steering wheel bezel with velcro strap to easily secure the remote to a steering wheel. The steering wheel bezel features a ribbed, rubberized grip to keep the remote securely in place along with a rubberized backer for a comfortable feel.
FEATURES AT A GLANCE
- 10 Meter Bluetooth® Range
- 4.0 Bluetooth® Smart Ready
- Controls Mobile Device Audio Settings
- Universal Bluetooth® Remote Control
- Easy One Button Pairing
- Hand-Held and Steering Wheel Options Included
- LED Pairing Indicator (Green)
- LED Low Battery Indicator (Red)
- IP67, Salt Spray, and UV Compliant
- Up to 2 Years of Standby Time
- 1 Year Warranty
- FCC, IC, RCM, CE Certified
- Volume, Track, Play/Pause Control
- Compatible with Android 5.0 and Above, iOS 8.0 and Above
Standby Time Up to 2 Years
Operating Voltage 2.4V - 3.3V
Description Bluetooth Universal Remote
Compatibility Android 5.0+ Apple iOS 8.0+
Dimensions 2.75” x 1-7/8” x 1-1/4" (7 mm x 4.8 mm x 3.2 mm)
Power Battery Operated (1x CR2032)
Bluetooth® Range 10 Meters (32 Feet)
LED Indicators GREEN (Bluetooth Pairing)
RED (Low Battery)
RED (Low Battery)
Bluetooth® 4.0 Smart Ready
Warranty 1 Year
Bezels Hand-Held Steering Wheel
2019 PMX-BTUR - owner's manual
Mobile Devices
| OPERATING SYSTEM | VERSION |
|---|---|
| Android | 5.0 and Above |
| iOS | 8.0 and Above |
Source Units
| MODEL | DESCRIPTION |
|---|---|
| PMX-1 | Punch Marine AM/FM/WB Digital Media Receiver 2.3" Dot Matrix Display |
